Parameter encoding is UTF-8 as standard.
Please refer to: http://en.wikipedia.org/wiki/UTF-8
Time format is UNIX timestamp.
Please refer to: https://en.wikipedia.org/wiki/Unix_time
application/json; charset=UTF-8
Get access token for the others requests, each api must contain the access token. The access token is valid for 2 hours, so we don't need refresh it frequently. We suggest refreshing the access token in every 90 minutes. When you request a new access token, the old one will be invalid immediately.
GET
| Parameter | Type | Required | Description |
|---|---|---|---|
| time | long | true | The time when the client sends request |
| account | string | true | Account |
| signature | string | true | Encrypted signature,the algorithm is:md5(md5(password) + time),md5 use 32 lower-case characters. |
/api/authorization
The password=Abc@34590，md5(md5(Abc@34590) + 1556243443) will calculate out the result signature=3844afd2c3bf68f0f3f4aa0a9ee8ee6c
So the request is: http://www.travr.pro/api/authorization?time=1556243443&account=test&signature=3844afd2c3bf68f0f3f4aa0a9ee8ee6c
| JSON KEY | Value type | Description | |
|---|---|---|---|
| record | Object | ||
| access_token | string | The access token | |
| expires in | long | access_token expire time in seconds | |
{
"record": {
"access_token": "ACCESS_TOKEN",
"expires_in": 7200
},
"code": 0
}
Get the latest coordinate data for tracking device.
GET
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The accesstoken |
| imeis | string | true | Target IMEI list, separated by comma, max 100 IMEIs in one request. |
/api/track
http://www.travr.pro/api/track?access_token={ACCESS_TOKEN}&imeis=358899123456789,355139000000234
| JSON KEY | Value type | Description | |
|---|---|---|---|
| imei | string | The imei of the target | |
| servertime | long | Current server time | |
| gpstime | long | Gps time | |
| hearttime | long | Heart time, the last time when the target sent data. | |
| systemtime | long | The system time when the target sent gps data. | |
| longitude | double | longitude | |
| latitude | double | latitude | |
| course | int | course(Noth is 0, clockwise increase ,max 360.) | |
| speed | int | speed(KM/H) | |
| acctime | long | ACC status kept time interval in seconds | |
| accstatus | int | ACC status 1:ACC ON， 0:ACC OFF, -1:No acc status |
|
| doorstatus | int | Door status 1:Door open， 0:Door closed， -1:No door status |
|
| chargestatus | int |
Charging status 1:Charging， 0:Not in charging， -1:No such status |
|
| oilpowerstatus | int |
Fuel status， 1:Fuel supply ok， 0:Fuel supply off， -1:No such status |
|
| defencestatus | int |
Defence status 1:Defence on， 0:Defence off， -1:No such status |
|
| datastatus | int |
1:Never online, 2:OK, 3:Expired, 4:Offline, 5:Block |
|
| battery | int |
The battery -1:No battery status |
|
| mileage | int |
mileage(unit:m) -1:No mileage. |
|
| todaymileage | long |
todaymileage(unit:m) -1:No todaymileage. |
|
| externalpower | string |
External Voltage(unit:V) "":No external voltage. |
|
| fuel | string |
The Fuel(unit:L) "":No fuel. |
|
| fueltime | long |
Fuel time,the last time when the target sent fuel data. 0:No fuel. |
|
| temperature | array |
The temperature(unit:℃) When target sent multiple temperatures, example:["30.90","31.70"] [ ]:No temperature. |
|
| temperaturetime | long |
Temperature time,the last time when the target sent temperature data. 0:No temperature. |
|
{
"record": [
{
"imei": "358899123456789",
"course": 195,
"systemtime": 1419905754,
"gpstime": 1419906052,
"speed": 0,
"hearttime": 1419906952,
"servertime": 1420964313,
"longitude": 113.909813,
"latitude": 22.583197,
"acctime": 1400,
"accstatus": 1,
"doorstatus": 0,
"chargestatus": 0,
"oilpowerstatus": 1,
"defencestatus": 0,
"datastatus": 2,
"battery": 100,
"mileage": 51654
"todaymileage": 15654
"externalpower": "12.1"
"fuel": "2.6"
"fueltime": 1419906052
"temperature": ["21.2"]
"temperaturetime": 1419906052
}
],
"code": 0
}

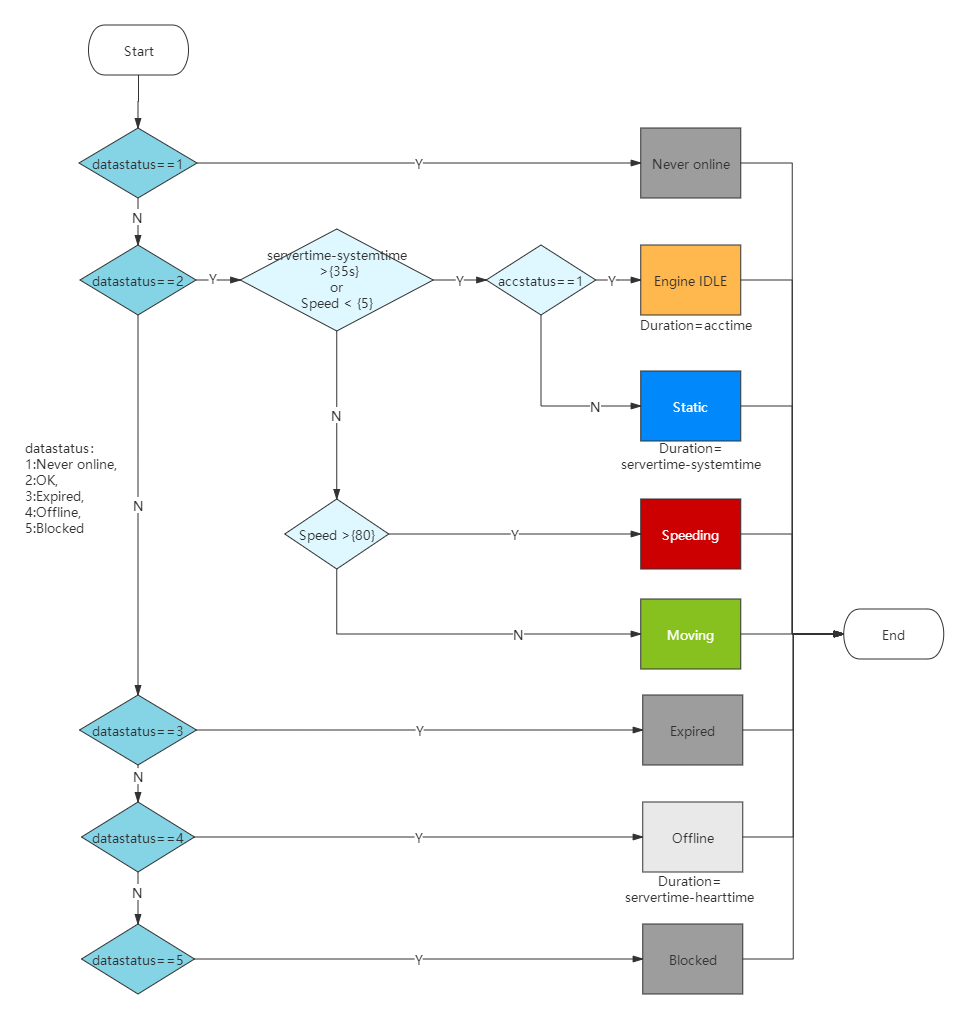

To get device's status, you can follow the flow chart below:
Get the GPS data of the target in the time period.
GET
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| imei | string | true | Target's IMEI |
| begintime | long | true | Begin time |
| endtime | long | true | End time |
/api/playback
http://www.travr.pro/api/playback?access_token={ACCESS_TOKEN}&imei=358899123456789&begintime=1406746394&endtime=1407746394
| JSON KEY | Value type | Description |
|---|---|---|
| record | String | Data is separated by semicolon，the data in each group is: longitude,latitude,gpstime,speed,course |
{
"record": "113.97196,22.568616,1406858664,0,228;113.97196,22.56861,1406858684,0,228;113.97196,22.56861,1406858704,0,228;113.97196,22.56861,1406858724,0,228;113.97196,22.56861,1406858724,0,228;113.97196,22.56861,1406858724,0,228;113.97196,22.56861,1406858724,0,228;113.971934,22.568583,1406858780,0,61;113.971925,22.568585,1406858800,0,61",
"code": 0
}
This api max return 1000 GPS records at one time, when the client get 1000 records, the client has to request next 1000 records, in this request ,the begin time is the last 1000th record’s gpstime, until client get the records less than 1000. When you get the records less than 1000, it means you’ve got all the GPS records.
This is a shortcut for fast create a circle geofence and bind the device with the geofence.
Note：
For creating polygon geofence, please refer to 2.21 Create Geofence and 2.25 Modify device geofence settings bind the device with the geofence(s).
POST
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| imei | string | true | Target's IMEI |
| efencename | string | true | The name of Geofence |
| alarmtype | int | true | Alarm type(0:out,1:in,2:in/out) |
| longitude | double | true | The longitude of the geofence center |
| latitude | double | true | The latitude of the geofence center |
| radius | int | true | Geofence radius(100~5000,unit:meter) |
/api/geofence/create
http://www.travr.pro/api/geofence/create?access_token={ACCESS_TOKEN}&imei=358899123456789&efencename=home&alarmtype=0&longitude=113.97196&latitude=22.56861&radius=300
{"code":0}
First call the send command api(2.5) to get command id. then call the query command status api(2.6) in loop until the command status is 1(Respond), max try 30 times, and then we consider the command is timeout.
send a command to device from server.
POST
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| imei | string | true | Target's IMEI |
| command | string | true |
The command RELAY,1: Stop Engine RELAY,0: Restore Engine RESET: Reset device LOCKDOOR : Lock Door UNLOCKDOOR : Unlock Door SET_MILEAGE : Set Mileage |
| paramData | string | false |
When you choose to set mileage, you must to fill in paramData example: {"mileage":"30"} |
/api/command/send
http://www.travr.pro/api/command/send?access_token={ACCESS_TOKEN}&imei=358899123456789&command=RELAY,1
| JSON KEY | Value type | Description | |
|---|---|---|---|
| record | Object | ||
| commandid | string | The id to query command response. | |
{
"record": {
"commandid": "1B454"
},
"code": 0
}
query the command response.
POST
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| commandid | string | true | The id returned from send command |
/api/command/query
http://www.travr.pro/api/command/query?access_token={ACCESS_TOKEN}&commandid=1B454
| JSON KEY | Value type | Description | |
|---|---|---|---|
| record | Object | ||
| response | string | The command response | |
| commandstatus | int |
Command status 1: has received response from device 0: not receive response from device |
|
{
"record": {
"response": "Cut off the fuel supply: Success! Speed: 2km/h.",
"commandstatus": 1
},
"code": 0
}
This api query once every 1 second, up to 30 seconds.
Get device list. (Return maximum 500pcs devices for each account.)
GET
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| account | string | false | Account |
/api/device/list
http://www.travr.pro/api/device/list?access_token={ACCESS_TOKEN}&account=demo
| JSON KEY | Value type | Description | |
|---|---|---|---|
| record | Object | ||
| imei | string | Target's IMEI | |
| devicename | String | Device name | |
| devicetype | String | Device model | |
| platenumber | String | Licence plate number | |
| onlinetime | long | Device first online time | |
| platformduetime | long | Device platform expire time | |
| simcard | String | SIM card | |
| iccid | String | ICCID | |
| activatedtime | long | Device activated time | |
| userduetime | long | Device user expire time | |
{
"code": 0,
"record": [
{
"imei": "512345678901234",
"devicename": "VT05S-01234",
"devicetype": "VT05S",
"platenumber": "TheOne",
"onlinetime": 0,
"platformduetime": 0,
"simcard": "7557862586",
"iccid": "89966415211160402250",
"activatedtime": 0,
"userduetime": 0
},
{
"imei": "123456789123456",
"devicename": "VT05S-23456",
"devicetype": "VT05S",
"platenumber": "",
"onlinetime": 1419905754,
"platformduetime": 1588603848,
"simcard": "",
"iccid": "",
"activatedtime": 1419805754,
"userduetime": 1589603848
}
]
}
Get the device alarm information in the time period.
Note：
From 2025-02-14 this api is deprecated, please refer to new api 2.17 Get device alarm information
GET
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| imei | string | true | Target IMEI |
| begintime | long | true | Begin time |
| endtime | long | true | End time |
/api/alarm/list
http://www.travr.pro/api/alarm/list?access_token={ACCESS_TOKEN}&imei=358899123456789&begintime=1406746394&endtime=1407746394
| JSON KEY | Value type | Description | |
|---|---|---|---|
| record | String | Data is separated by semicolon，the data in each group is: alarm type, longitude, latitude, gpstime, system time,speed,course, Geo-fence ID | |
{
"code": 0,
"record": "27,113.885888,22.580592,1541575497,1541575507,40,40,0"
}
This API max return 100 alarm records at one time, when the client get 100 records, the client has to request next 100 records, in this request ,the begin time is the last 100th record's system time, until client get the records less than 100. When you get the records less than 100, it means you’ve got all the alarm records.
For Alarm type details,please refer to Chapter 4.1.
Block an account.
POST
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| account | string | true | Account |
/api/user/block
http://www.travr.pro/api/user/block?access_token={ACCESS_TOKEN}&account=demo
{
"code": 0
}
Unblock an account.
POST
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| account | string | true | Account |
/api/user/unblock
http://www.travr.pro/api/user/unblock?access_token={ACCESS_TOKEN}&account=demo
{
"code": 0
}
Get the account's brief information.
GET
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| account | string | true | Account |
/api/user/info
http://www.travr.pro/api/user/info?access_token={ACCESS_TOKEN}&account=demo
| JSON KEY | Value type | Description | |
|---|---|---|---|
| record | Object | ||
| account | String | Account | |
| username | String | User name | |
| String | Email address | ||
| mobile | String | Mobile number | |
| telephone | String | Telephone | |
| contact | String | Contact | |
| createtime | long | Create time | |
| roletype | int | 1 Distributor, 2 End user, 3 Virtual account | |
| blockstatus | int |
0:block 1:unblock |
|
{
"code": 0,
"record": {
"createtime": 1562570435,
"mobile": "",
"telephone": "",
"contact": "",
"roletype": 1,
"account": "demo",
"email": "openapidemo@gmail.com",
"blockstatus": 1,
"username": "openapidemo"
}
}
Get the device(s) basic information according to IMEIs. (Maximum 100pcs in one request.)
GET
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| imeis | string | true | Target IMEI list, separated by comma, max 100 IMEIs in one request. |
/api/device/detail
http://www.travr.pro/api/device/detail?access_token={ACCESS_TOKEN}&imeis=358899123456789,355139000000234
| JSON KEY | Value type | Description | |
|---|---|---|---|
| record | Object | ||
| imei | string | Target's IMEI | |
| devicename | String | Device name | |
| devicetype | String | Device model | |
| platenumber | String | Licence plate number | |
| onlinetime | long | Device first online time | |
| platformduetime | long | Device platform expire time | |
| simcard | String | SIM card | |
| iccid | String | ICCID | |
| activatedtime | long | Device activated time | |
| userduetime | long | Device user expire time | |
{
"code": 0,
"record": [
{
"imei": "512345678901234",
"devicename": "VT05S-01234",
"devicetype": "VT05S",
"platenumber": "TheOne",
"onlinetime": 0,
"platformduetime": 0,
"simcard": "7557862586",
"iccid": "89966415211160402250",
"activatedtime": 0,
"userduetime": 0
},
{
"imei": "123456789123456",
"devicename": "VT05S-23456",
"devicetype": "VT05S",
"platenumber": "",
"onlinetime": 1419905754,
"platformduetime": 1588603848,
"simcard": "",
"iccid": "",
"activatedtime": 1419805754,
"userduetime": 1589603848
}
]
}
Send message to account.
POST
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| accounts | string | true | Account list, separated by comma, max 200 accounts in one request. |
| content | string | true | Max. of 300 characters. |
/api/message/send
http://www.travr.pro/api/message/send?access_token={ACCESS_TOKEN}&accounts=test,name&content=Hello
{
"code": 0
}
Get mileage report of devices in the time period.
GET
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| imeis | string | true | Target IMEI list, separated by comma, max 100 IMEIs in one request. |
| begintime | long | true | Begin time. The minute of begintime can only be 0 or 30, for example 01:00, 02:30. |
| endtime | long | true | End time. The minute of endtime can only be 0 or 30, for example 01:00, 02:30. |
* The begintime is included ,endtime is not included.
* The maximum interval between begintime and endtime is 7 days.
/api/device/mileage
http://www.travr.pro/api/device/mileage?access_token={ACCESS_TOKEN}&imeis=351000091413001,351000091413002,351000091413003,351000091413004&begintime=1631721600&endtime=1631808000
| JSON KEY | Value type | Description | |
|---|---|---|---|
| record | Array | ||
| imei | string | Device imei | |
| mileage | double | mileage of device, in km | |
{
"record": [
{
"imei": "351000091413001",
"mileage": 338.21
},
{
"imei": "351000091413002",
"mileage": 500.56
},
{
"imei": "351000091413003",
"mileage": 280.87
},
{
"imei": "351000091413004",
"mileage": 621.21
}
],
"code": 0
}
Get sub-customer list. (Return maximum 500pcs users.)
GET
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| account | string | false | Account |
/api/user/list
http://www.travr.pro/api/user/list?access_token={ACCESS_TOKEN}&account=demo
| JSON KEY | Value type | Description | |
|---|---|---|---|
| record | Object | ||
| account | String | Account | |
| username | String | User name | |
| String | Email address | ||
| mobile | String | Mobile number | |
| telephone | String | Telephone | |
| contact | String | Contact | |
| createtime | long | Create time | |
| roletype | int | 1 Distributor, 2 End user, 3 Virtual account | |
| blockstatus | int |
0:block 1:unblock |
|
| hassubcustomer | boolean |
true:Has subcustomer false:No subcustomer |
|
{
"code": 0,
"record": [
{
"createtime": 1562570435,
"mobile": "",
"telephone": "",
"contact": "",
"roletype": 1,
"account": "demo",
"email": "openapidemo@gmail.com",
"blockstatus": 1,
"username": "openapidemo",
"hassubcustomer": true
},
{
"createtime": 1562670132,
"mobile": "",
"telephone": "",
"contact": "",
"roletype": 1,
"account": "demotest",
"email": "demotest@gmail.com",
"blockstatus": 1,
"username": "demotest name",
"hassubcustomer": false
}
]
}
Modify sub-customer password.
POST
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| account | string | true | Account |
| password | string | true | the algorithm is:md5(password),md5 use 32 lower-case characters. |
/api/user/password/set
If the new password is Abc@34590，then md5(Abc@34590) will calculate out the parameter password=9d591136280b3ec563e3062dbb6f915b
http://www.travr.pro/api/user/password/set?access_token={ACCESS_TOKEN}&account=monitorcenter&password=9d591136280b3ec563e3062dbb6f915b
{
"code": 0
}
Get the device alarm information in the time period.
GET
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| imei | string | true | Target IMEI |
| begintime | long | true | Begin time |
| endtime | long | true | End time |
/api/alarm/list2
http://www.travr.pro/api/alarm/list2?access_token={ACCESS_TOKEN}&imei=358899123456789&begintime=1406746394&endtime=1407746394
| JSON KEY | Value type | Description | |
|---|---|---|---|
| record | Array | ||
| alarmtype | int | alarm type. For details,please refer to Chapter 4.1 | |
| longitude | double | longitude | |
| latitude | double | latitude | |
| gpstime | long | Gps time | |
| systemtime | long | The system time when the target sent alarm data | |
| speed | int | speed(KM/H) | |
| course | int | course(Noth is 0, clockwise increase ,max 360.) | |
| geofenceid | long | Geo-fence ID, when alarmtype is 5(geoFenceInAlarm) or 6(geoFenceOutAlarm), it has a value, otherwise it is 0. |
|
| geofencename | String | Geo-fence Name,when alarmtype is 5(geoFenceInAlarm) or 6(geoFenceOutAlarm), it has a value, otherwise it is "". |
|
{
"code": 0,
"record": [
{
"alarmtype": 27,
"latitude": -23.53665,
"longitude": -49.246352,
"gpstime": 1541575497,
"systemtime": 1541575507,
"speed": 20,
"course": 8,
"geofenceid": 0,
"geofencename": ""
},
{
"alarmtype": 5,
"latitude": -23.53668,
"longitude": -49.246362,
"gpstime": 1541575598,
"systemtime": 1541575617,
"speed": 45,
"course": 93,
"geofenceid": 1075558,
"geofencename": "test-geofence"
}
]
}
This API max return 100 alarm records at one time, when the client get 100 records, the client has to request next 100 records, in this request ,the begin time is the last 100th record's system time, until client get the records less than 100. When you get the records less than 100, it means you’ve got all the alarm records.
Get the device alarm settings information.
GET
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| imei | string | true | Target IMEI |
/api/device/alertsettings/get
http://www.travr.pro/api/device/alertsettings/get?access_token={ACCESS_TOKEN}&imei=358899123456789
| JSON KEY | Value type | Description | |
|---|---|---|---|
| record | Array | ||
| alarmtype | int | alarm type. For details,please refer to Chapter 4.2 | |
| switch | int | alarm settings switch. 1:on, 0:off | |
| threshold | String | alarm settings threshold. For details,please refer to Chapter 4.2 | |
{
"code": 0,
"record": [
{
"alarmtype": 7,
"switch": 0,
"threshold": "80"
},
{
"alarmtype": 9,
"switch": 0,
"threshold": ""
},
{
"alarmtype": 10,
"switch": 0,
"threshold": ""
},
{
"alarmtype": 26,
"switch": 0,
"threshold": ""
},
{
"alarmtype": 27,
"switch": 0,
"threshold": ""
},
{
"alarmtype": 28,
"switch": 0,
"threshold": "25"
},
{
"alarmtype": 29,
"switch": 0,
"threshold": "6"
},
{
"alarmtype": 30,
"switch": 0,
"threshold": "6"
},
{
"alarmtype": 31,
"switch": 0,
"threshold": "12"
},
{
"alarmtype": 32,
"switch": 0,
"threshold": "12"
},
{
"alarmtype": 34,
"switch": 1,
"threshold": "00:00,08:00"
},
{
"alarmtype": 35,
"switch": 0,
"threshold": "0"
},
{
"alarmtype": 36,
"switch": 0,
"threshold": "0"
},
{
"alarmtype": 41,
"switch": 0,
"threshold": "240"
},
{
"alarmtype": 42,
"switch": 0,
"threshold": "180"
},
{
"alarmtype": 43,
"switch": 0,
"threshold": "10"
}
]
}
Modify device alarm settings.
POST
| Query Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| imei | string | true | Target IMEI |
| Body Parameter | Type | Required | Description |
|---|---|---|---|
| alarmtype | int | true | alarm type. For details,please refer to Chapter 4.2 |
| switch | int | true | alarm settings switch. 1:on, 0:off |
| threshold | String | true | alarm settings threshold.
no threshold alarm settings please set to "", alarm type needs threshold, please set the threshold value. For details,please refer to Chapter 4.2 |
/api/device/alertsettings/set
http://www.travr.pro/api/device/alertsettings/set?access_token={ACCESS_TOKEN}&imei=358899123456789
body-data(application/json):
[
{
"alarmtype": 7,
"switch": 1,
"threshold": "80"
},
{
"alarmtype": 9,
"switch": 1,
"threshold": ""
},
{
"alarmtype": 34,
"switch": 0,
"threshold": "00:00,08:00"
}
]
{
"code": 0
}
Get customer geofence list.
GET
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| account | string | true | Account |
| pagenumber | int | true | page number,from 1 |
| pagesize | int | true | page size,maximum 100 |
/api/geofence/list
http://www.travr.pro/api/geofence/list?access_token={ACCESS_TOKEN}&account=demo&pagenumber=1&pagesize=100
| JSON KEY | Value type | Description | |
|---|---|---|---|
| record | Object | ||
| id | String | Geofence id | |
| name | String | Geofence name | |
| type | int | Geofence type, 2:circle, 3:polygon | |
| parameter | String | Geofence parameter
type:2(circle), parameter:longitude,latitude,radius(unit:m) type:3(polygon), parameter:longitude,latitude;longitude,latitude;..;.. Note:maximum 1000 coordinates for polygon Latitude and longitude retain 6 decimal places. |
|
| speeding | int | In geofence triggered Speeding alarm value.
0 means not turn on the speeding alarm in the fence Unit: km/h |
|
| usetimes | String | Alert will only be triggered during the periods after you set up.
"" means all day can be triggered Format: HH:mm,HH:mm;HH:mm,HH:mm;.. Range: [00:00,23:59] Example: 01:10,02:20 Example: 00:00,06:00;10:00,12:00 |
|
{
"code": 0,
"record": [
{
"id": "1076078",
"name": "geofence1",
"type": 2,
"parameter": "-77.036871,38.907192,1000",
"speeding": 0
"usetimes": ""
},
{
"id": "1076079",
"name": "geofence2",
"type": 3,
"parameter": "105.069202,-3.994672;105.077767,-4.000879;105.074495,-4.010923;105.063909,-4.010923;105.060638,-4.000879",
"speeding": 85
"usetimes": "00:00,06:00;10:00,12:00"
}
]
}
The response results are arranged in reverse order of creation time.
Create geofence.
POST
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| account | string | true | Target's account |
| geofencename | string | true | Geofence name |
| geofencetype | int | true | Geofence type, 2:circle, 3:polygon |
| geofenceparameter | String | true | Geofence parameter
type:2(circle), parameter:longitude,latitude,radius(unit:m) type:3(polygon), parameter:longitude,latitude;longitude,latitude;..;.. Note:maximum 1000 coordinates for polygon Latitude and longitude retain 6 decimal places. |
| geofencespeeding | String | false | In geofence triggered Speeding alarm value.
Range: [10,400] Unit: km/h |
| geofenceusetimes | String | false | Alert will only be triggered during the periods after you set up.
Format: HH:mm,HH:mm;HH:mm,HH:mm;.. Range: [00:00,23:59] Example: 01:10,02:20 Example: 00:00,06:00;10:00,12:00 |
/api/geofence/create2
http://www.travr.pro/api/geofence/create2?access_token={ACCESS_TOKEN}&account=demo&geofencename=geofence1&geofencetype=2&geofenceparameter=27.914489,-25.991502,1000
http://www.travr.pro/api/geofence/create2?access_token={ACCESS_TOKEN}&account=demo&geofencename=geofence2&geofencetype=2&geofenceparameter=27.914599,-25.991502,1000&geofencespeeding=80
http://www.travr.pro/api/geofence/create2?access_token={ACCESS_TOKEN}&account=demo&geofencename=geofence3&geofencetype=2&geofenceparameter=27.914489,-25.991502,1000&geofencespeeding=80&geofenceusetimes=00:00,06:00
http://www.travr.pro/api/geofence/create2?access_token={ACCESS_TOKEN}&account=demo&geofencename=geofence4&geofencetype=3&geofenceparameter=105.069202,-3.994672;105.077767,-4.000879;105.074495,-4.010923
{
"code":0,
"record":{
"id": "1075972"
}
}
Delete geofence.
Note：
All binding relationship with this fence will be deleted.
GET
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| id | string | true | Geofence id |
/api/geofence/delete
http://www.travr.pro/api/geofence/delete?access_token={ACCESS_TOKEN}&id=123456
{
"code": 0
}
Modify geofence.
POST
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| id | String | true | Geofence id |
| geofencename | String | true | Geofence name |
| geofencetype | int | true | Geofence type, 2:circle, 3:polygon |
| geofenceparameter | String | true | Geofence parameter
type:2(circle), parameter:longitude,latitude,radius(unit:m) type:3(polygon), parameter:longitude,latitude;longitude,latitude;..;.. Note:maximum 1000 coordinates for polygon Latitude and longitude retain 6 decimal places. |
| geofencespeeding | String | false | In geofence triggered Speeding alarm value.
Range: [10,400] Unit: km/h |
| geofenceusetimes | String | false | Alert will only be triggered during the periods after you set up.
Format: HH:mm,HH:mm;HH:mm,HH:mm;.. Example: 01:10,02:20 Example: 00:00,06:00;10:00,12:00 |
/api/geofence/edit
http://www.travr.pro/api/geofence/edit?access_token={ACCESS_TOKEN}&id=123456&geofencename=geofence1&geofencetype=2&geofenceparameter=27.914489,-25.991502,1000
http://www.travr.pro/api/geofence/edit?access_token={ACCESS_TOKEN}&id=123456&geofencename=geofence1&geofencetype=2&geofenceparameter=27.914489,-25.991502,1000&geofencespeeding=80
http://www.travr.pro/api/geofence/edit?access_token={ACCESS_TOKEN}&id=123456&geofencename=geofence1&geofencetype=3&geofenceparameter=105.069202,-3.994672;105.077767,-4.000879&geofencespeeding=80
http://www.travr.pro/api/geofence/edit?access_token={ACCESS_TOKEN}&id=123456&geofencename=geofence1&geofencetype=3&geofenceparameter=105.069202,-3.994672;105.077767,-4.000879&geofencespeeding=80&geofenceusetimes=00:00,06:00
{
"code": 0
}
Get device geofence list.
GET
| Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| imei | string | true | Target IMEI |
/api/device/geofence
http://www.travr.pro/api/device/geofence?access_token={ACCESS_TOKEN}&imei=358899123456789
| JSON KEY | Value type | Description | |
|---|---|---|---|
| record | Object | ||
| geofenceid | String | Geofence id | |
| geofencename | String | Geofence name | |
| in | int | Alarm when entering the geofence, 1:on, 0:off. | |
| out | int | Alarm when leaving the geofence, 1:on, 0:off. | |
| speedingalert | int | Alarm when speeding in the geofence, 1:on, 0:off. | |
| relaycommand | int | A Stop Engine command will be automatically sent to the selected device once it leaves the Geo-fence, 1:on, 0:off.
Note: This option need to turn on out geofence alert. |
|
{
"code": 0,
"record": [
{
"geofenceid": "1075642",
"geofencename": "geofence1",
"in": 1,
"out": 1,
"speedingalert": 0,
"relaycommand": 0
},
{
"geofenceid": "1075643",
"geofencename": "geofence2",
"in": 1,
"out": 1,
"speedingalert": 1,
"relaycommand": 1
}
]
}
Modify device geofence settings.
POST
| Query Parameter | Type | Required | Description |
|---|---|---|---|
| access_token | string | true | The access token |
| Body Parameter | Type | Required | Description | |
|---|---|---|---|---|
| imei | Array | true | IMEI list.(Maximum 100pcs in one request.) | |
| geofenceconfig | Array | true | ||
| geofenceid | String | true | Geofence id | |
| in | int | true | Alarm when entering the geofence, 1:on, 0:off. | |
| out | int | true | Alarm when leaving the geofence, 1:on, 0:off. | |
| speedingalert | int | true | Alarm when speeding in the geofence, 1:on, 0:off. | |
| relaycommand | int | true | A Stop Engine command will be automatically sent to the selected device once it leaves the Geo-fence, 1:on, 0:off.
Note: This option need to turn on out geofence alert. |
|
/api/device/geofence/set
http://www.travr.pro/api/device/geofence/set?access_token={ACCESS_TOKEN}
body-data(application/json):
{
"imei":["368899123456789","358899123456789"],
"geofenceconfig": [
{
"geofenceid": "1075642",
"in": 1,
"out": 1,
"relaycommand": 1,
"speedingalert": 1
},
{
"geofenceid": "1075643",
"in": 1,
"out": 1,
"relaycommand": 0,
"speedingalert": 0
}
]
}
{
"code": 0
}
| Code | Description | Remark |
|---|---|---|
| 10000 | System error | |
| 10001 | Unknown request | |
| 10002 | Login timeout | |
| 10003 | Not login yet | |
| 10004 | Parameter error | |
| 10005 | Missing required parameter | |
| 10006 | The parameter is out of range | |
| 10007 | Permission denied | |
| 10009 | Request is too frequency | |
| 10010 | Access token doesn’t exist | |
| 10011 | Access token is invalid | |
| 10012 | Access token is out of date | |
| 10013 | IMEI is not authorized | |
| 10014 | Request time error | |
| 10016 | Account is blocked | |
| 20001 | Account or password error | |
| 20005 | Target doesn't exist. | |
| 20017 | Device is offline. | |
| 20018 | Send command fail. | |
| 20023 | No Data. | |
| 20046 | Target is expired. | |
| 20048 | Unsupported command. | |
| 20089 | Device is blocked. |
| Alarm type | Description | Remark |
|---|---|---|
| 1 | sosAlarm | |
| 2 | lowBatteryAlarm | |
| 3 | powerDisconnectAlarm | |
| 4 | vibrationAlarm | |
| 5 | geoFenceInAlarm | |
| 6 | geoFenceOutAlarm | |
| 7 | speedingAlarm | |
| 8 | carMoveAlarm | |
| 9 | engineOn | |
| 10 | engineOff | |
| 11 | tireTemperatureAlarm | |
| 12 | tireLeakPressureAlarm | |
| 13 | tireLowPressureAlarm | |
| 14 | tireHighPressureAlarm | |
| 15 | gpsDeadZoneInAlarm | |
| 16 | gpsDeadZoneOutAlarm | |
| 17 | obdDtcAlarm | |
| 18 | disassembleAlarm | |
| 19 | powerOffAlarm | |
| 20 | collisionAlarm | |
| 21 | dropAlarm | |
| 22 | routeAlarm | |
| 23 | rapidAccelerationAlarm | |
| 24 | rapidDecelerationAlarm | |
| 25 | sharpTurnAlarm | |
| 26 | dooropenAlarm | |
| 27 | doorcloseAlarm | |
| 28 | offlineAlarm | |
| 29 | engineIdleAlarm | |
| 30 | parkingAlarm | |
| 31 | oilLeakAlertAlarm | |
| 32 | oilTheftAlertAlarm | |
| 33 | jammingAlarm | |
| 34 | restrictedDrivingAlarm | |
| 35 | lowTemperatureAlarm | |
| 36 | highTemperatureAlarm | |
| 37 | dumpSwitchOnAlarm | |
| 38 | dumpSwitchOffAlarm | |
| 39 | armAlarm | |
| 40 | rolloverAlarm | |
| 41 | fatigueDrivingAlarm | |
| 42 | lackBreakFatigueDrivingAlarm | |
| 43 | lowOilAlarm | |
| 44 | lowExternalBatteryAlarm |
| Alarm type | Alarm description | Threshold |
|---|---|---|
| 7 | speedingAlarm | Triggered when speed exceeds the threshold.
Range: [10, 400] Unit: km/h |
| 9 | engineOn | No threshold needed,controlled by switch only. |
| 10 | engineOff | No threshold needed,controlled by switch only. |
| 26 | dooropenAlarm | No threshold needed,controlled by switch only. |
| 27 | doorcloseAlarm | No threshold needed,controlled by switch only. |
| 28 | offlineAlarm | No threshold needed,controlled by switch only. |
| 29 | engineIdleAlarm | Triggered when engine idle time exceeds the threshold.
Range: [2,120] Unit: minute |
| 30 | parkingAlarm | Triggered when parking time exceeds the threshold.
Range: [1,120] Unit: minute |
| 31 | refuelAlertAlarm | Triggered when refuel exceeds the threshold.
Range: [1,1000] Unit: L/minute |
| 32 | oilTheftAlertAlarm | Triggered when fuel drop rate exceeds the threshold.
Range: [1,1000] Unit: L/minute |
| 34 | restrictedDrivingAlarm | Triggered when vehicle drives exceed allowed time range.
Format: HH:mm,HH:mm;HH:mm,HH:mm;.. Range: [00:00,23:59] Example: 00:00,06:00 Example: 01:00,07:00;12:10,13:20 |
| 35 | lowTemperatureAlarm | Triggered when temperature falls below the threshold.
Range: [-100,100] Unit: °C |
| 36 | highTemperatureAlarm | Triggered when temperature exceeds the threshold.
Range: [-100,100] Unit: °C |
| 41 | fatigueDrivingAlarm | Triggered when continuous driving time exceeds the threshold.
Range: [60,480] Unit: minute |
| 42 | lackBreakFatigueDrivingAlarm | Triggered when rest time is shorter than the threshold.
Range: [30,480] Unit: minute |
| 43 | lowOilAlarm | Triggered when fuel level falls below the threshold.
Range: [0,1000] Unit: L |
